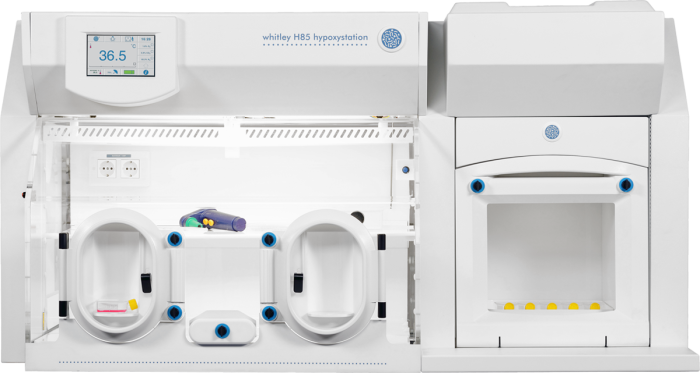

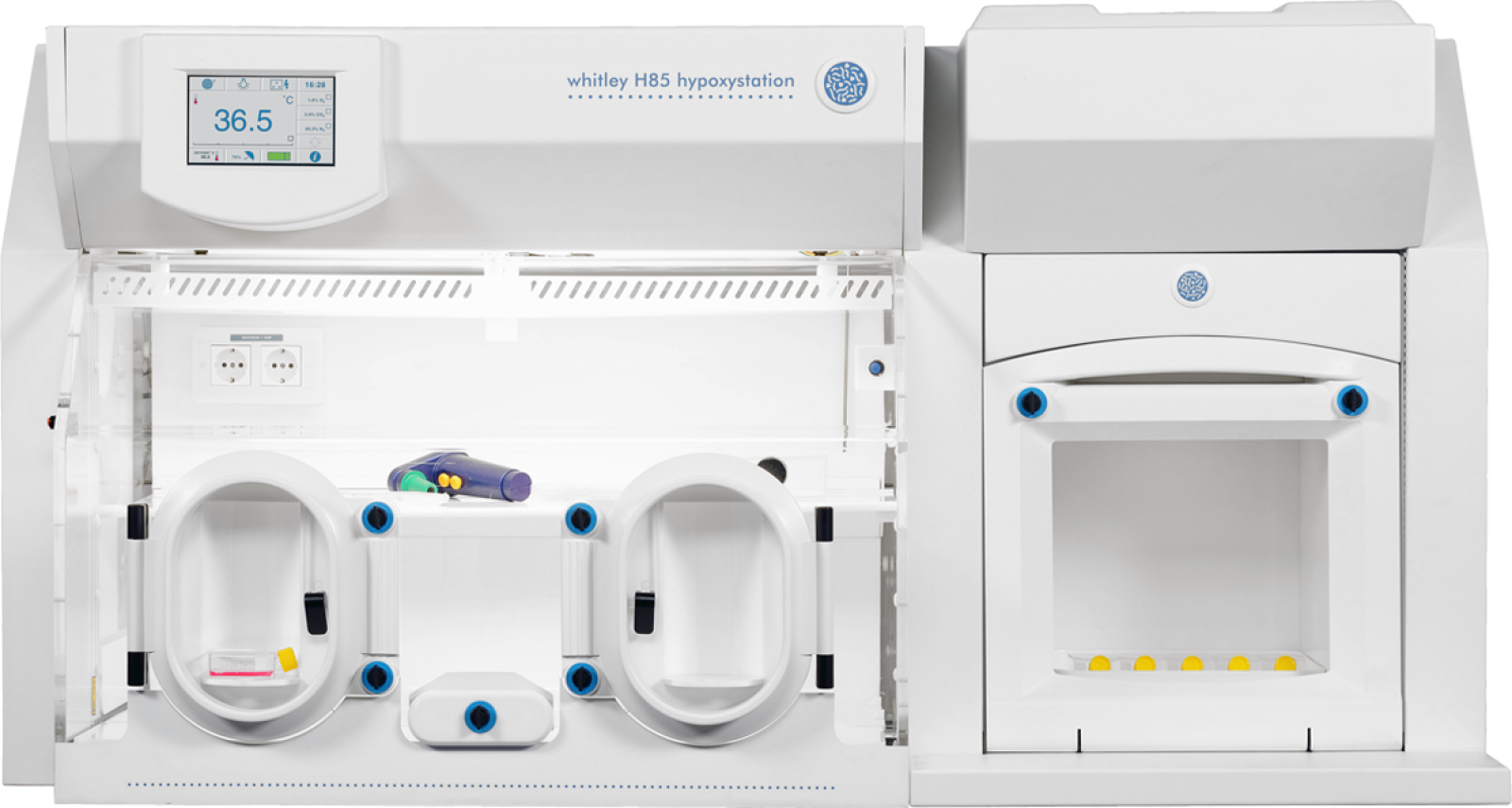

Whitley H85 Hypoxystation

Got a Question? Request a Callback

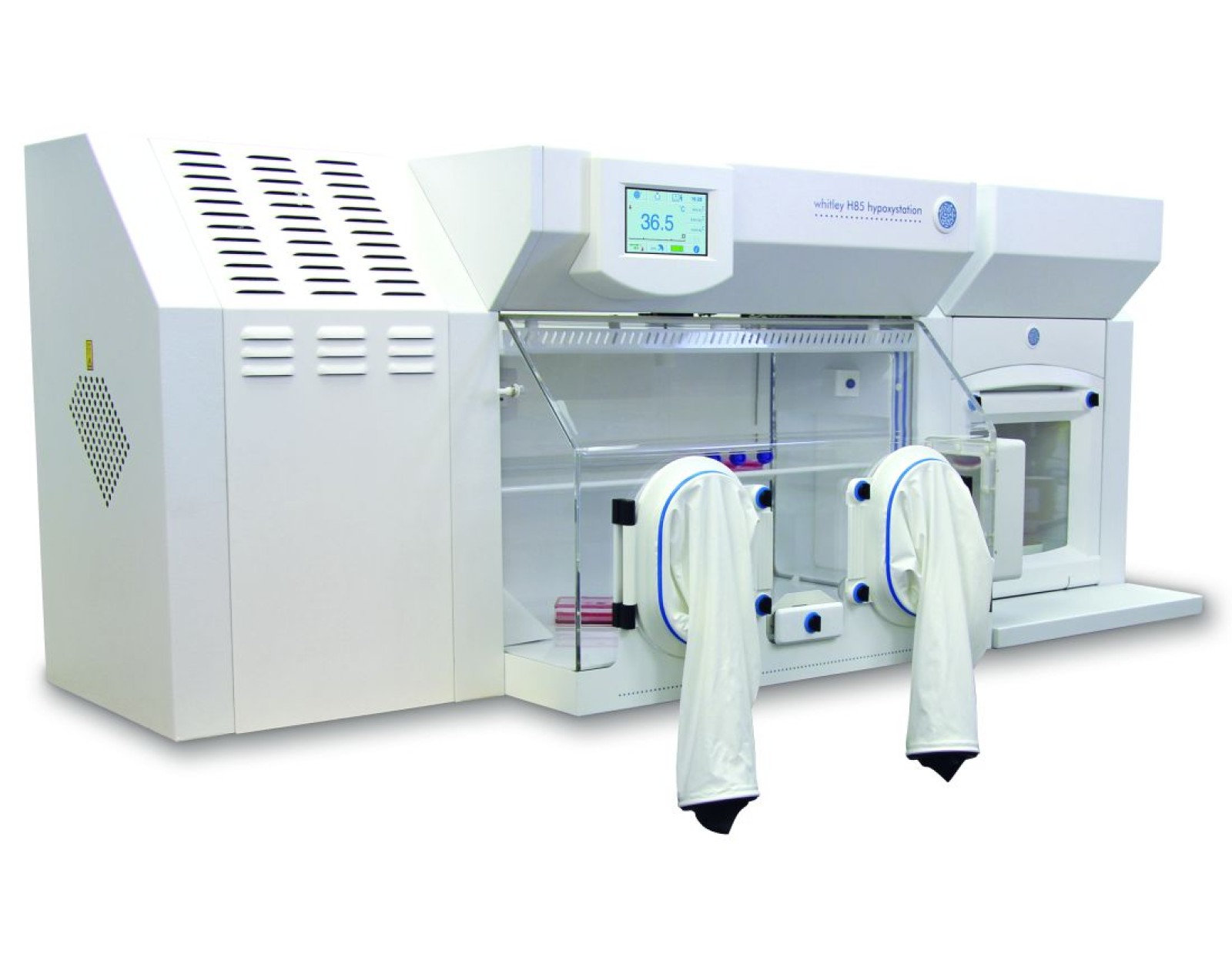

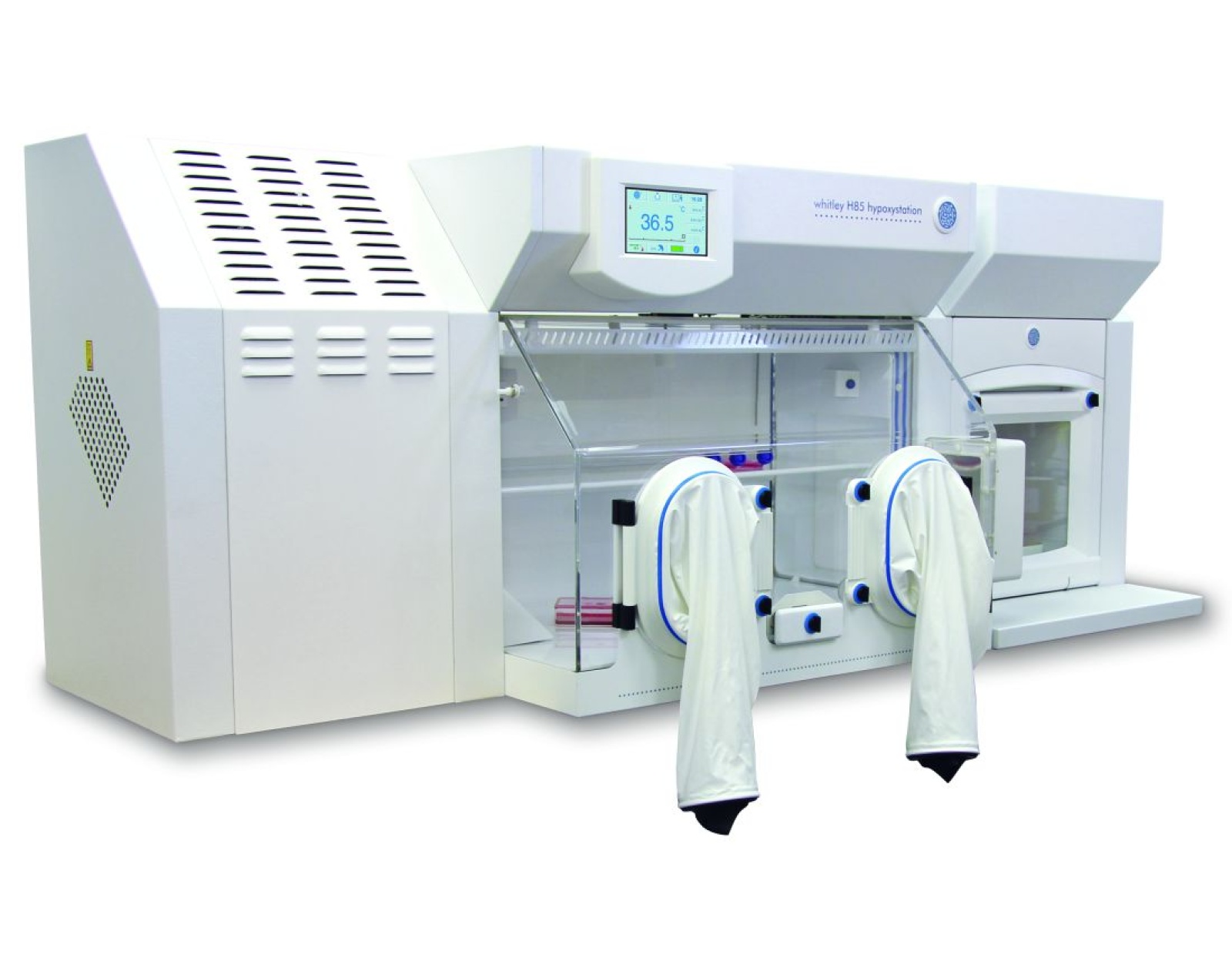

The Whitley H85 Hypoxystation creates hypoxic and anoxic conditions within a controlled and sustained workstation environment. It is ideal for researchers wanting to accurately control oxygen, carbon dioxide, temperature and humidity in a variety of cell culture applications.

Now you can control oxygen in 0.1% increments up to 20%; carbon dioxide in 0.1% increments up to 15%; and relative humidity up to 80%, which provides flexibility in your research and confidence in your results.

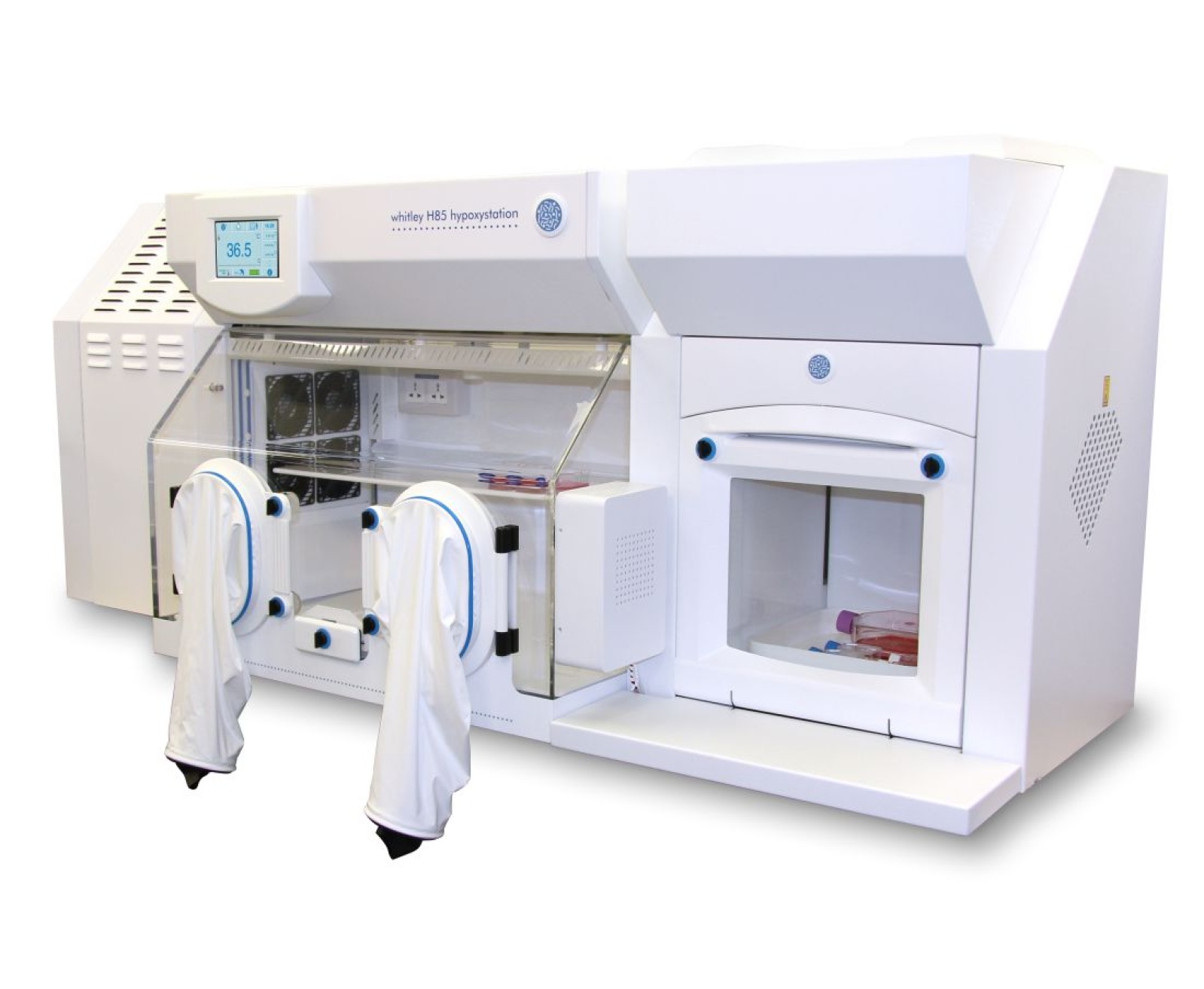

This workstation is available with an optional refrigeration unit designed to operate at 8°C (other set temperatures available if required).

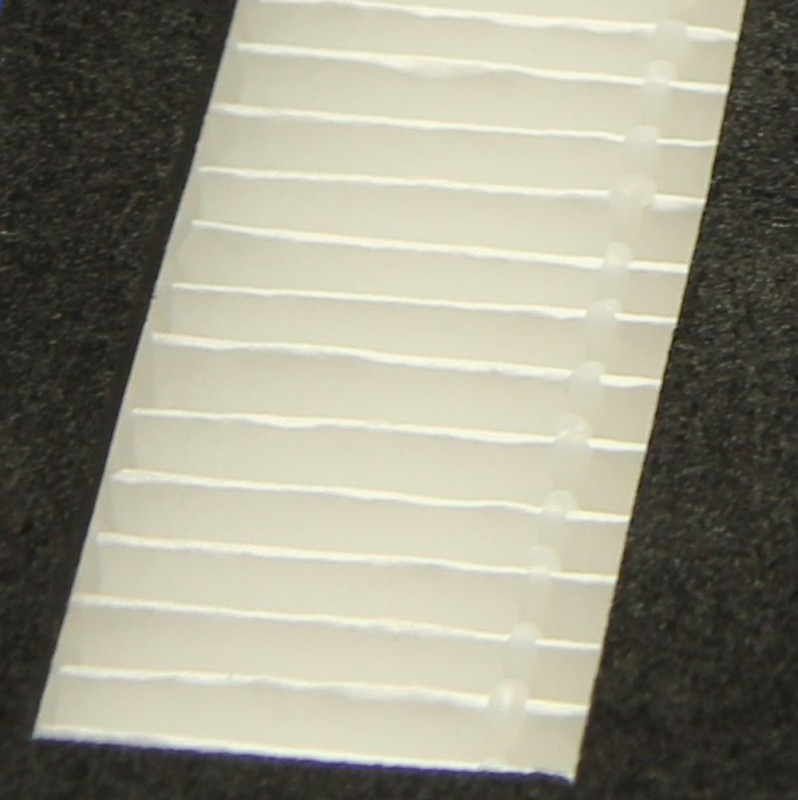

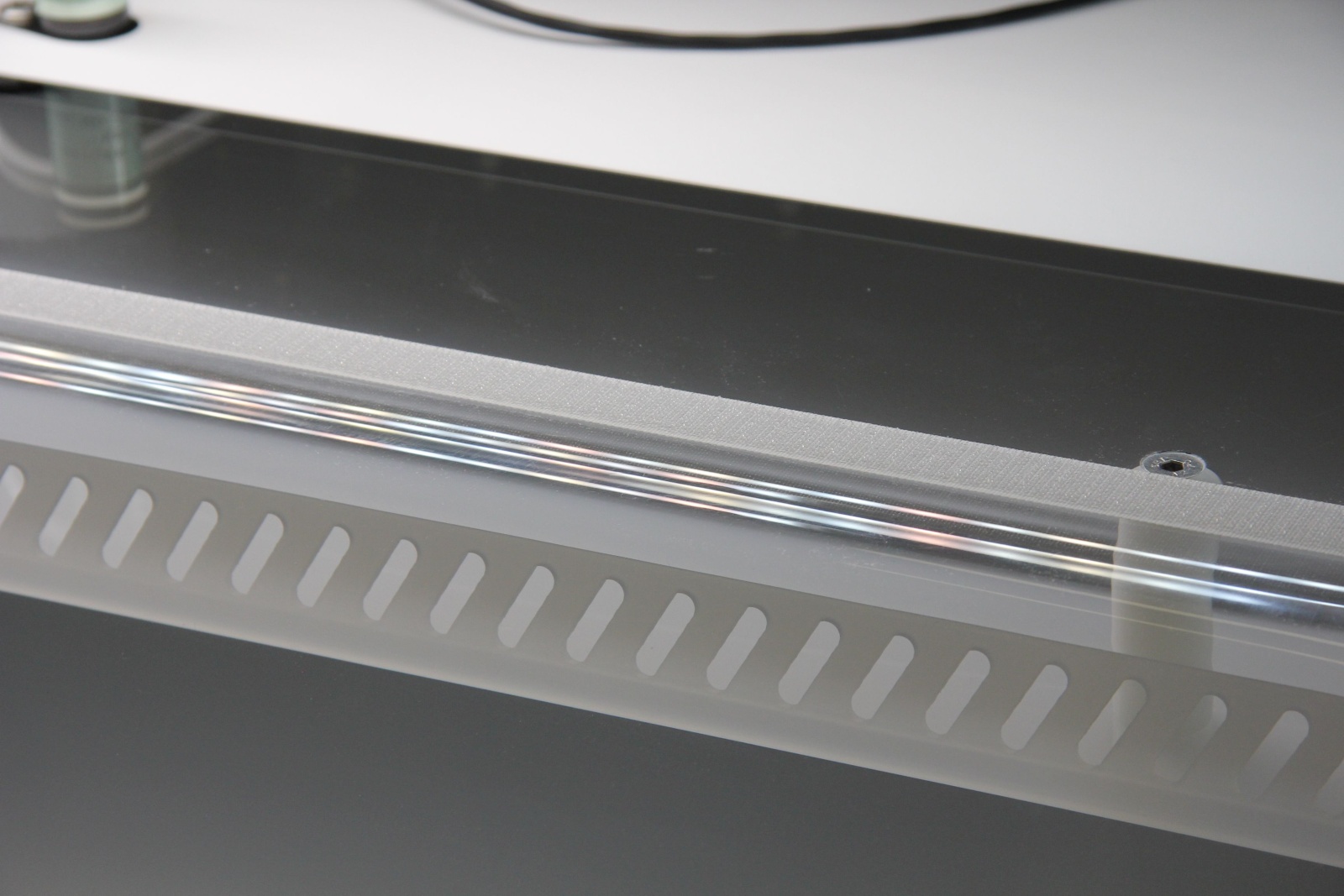

The H85 is now available as an H85 HEPA Hypoxystation, fitted with the unique Whitley Internal HEPA Filtration System. All the atmosphere passes through the filter hundreds of times an hour, which ensures the chamber environment is cleaned quickly.

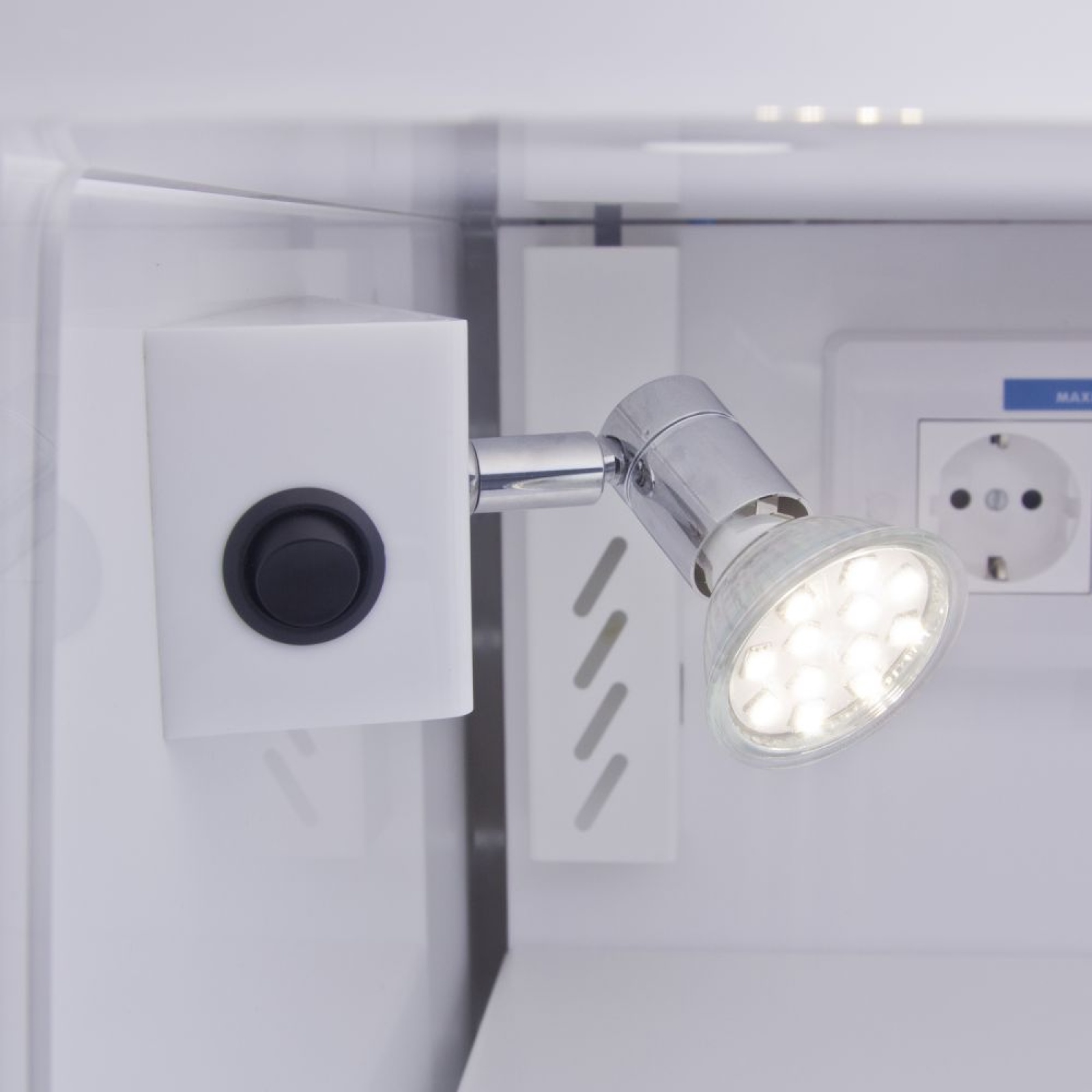

Other options include data logging and oxygen profiling, two different types of trolley, light-tight cover, cable glands, internal power socket and IOQ documentation. If you need to aspirate biological liquid waste from inside the chamber, order with a Vacuum Take-off Port and the Whitley AsPROvac for the perfect package.

Equilibrate your media

Although the Hypoxystation allows tight control of the conditions under which cells are cultured, cells may still be unintentionally exposed to excess oxygen during media changes if the fresh media has not previously been equilibrated with the incubation atmosphere. With the Whitley Media Conditioner (UK Patent No. GB2579704)  you can equilibrate your liquid media rapidly and ensure even greater accuracy in your research.

  • Available with patented oval glove ports operated by wireless footswitch to allow you to work gloved or bare handed.

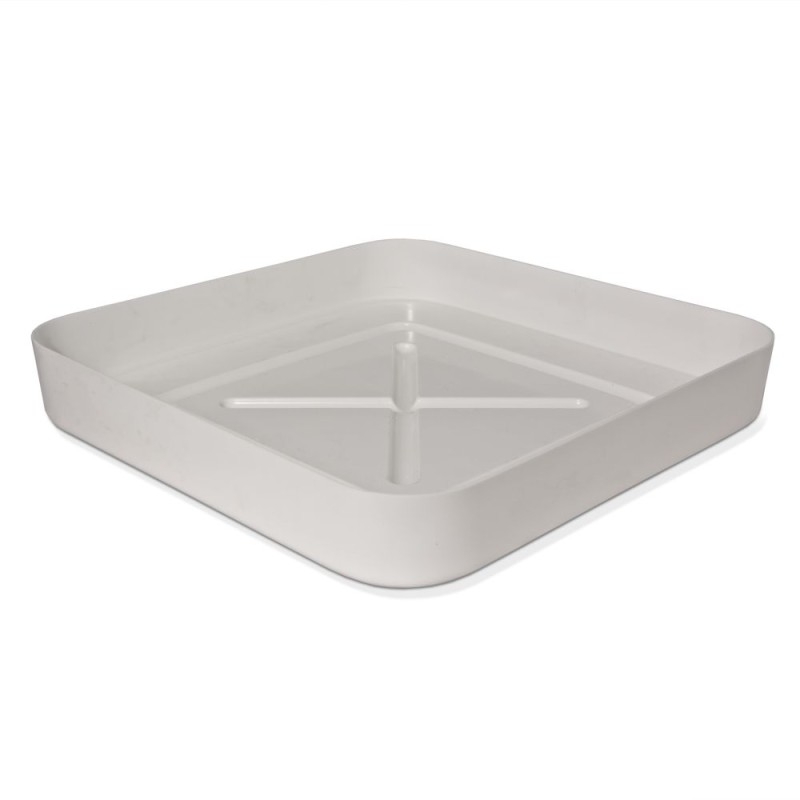

  • Built-in 36 litre airlock for transfer of bulk samples and equipment into the workstation environment.

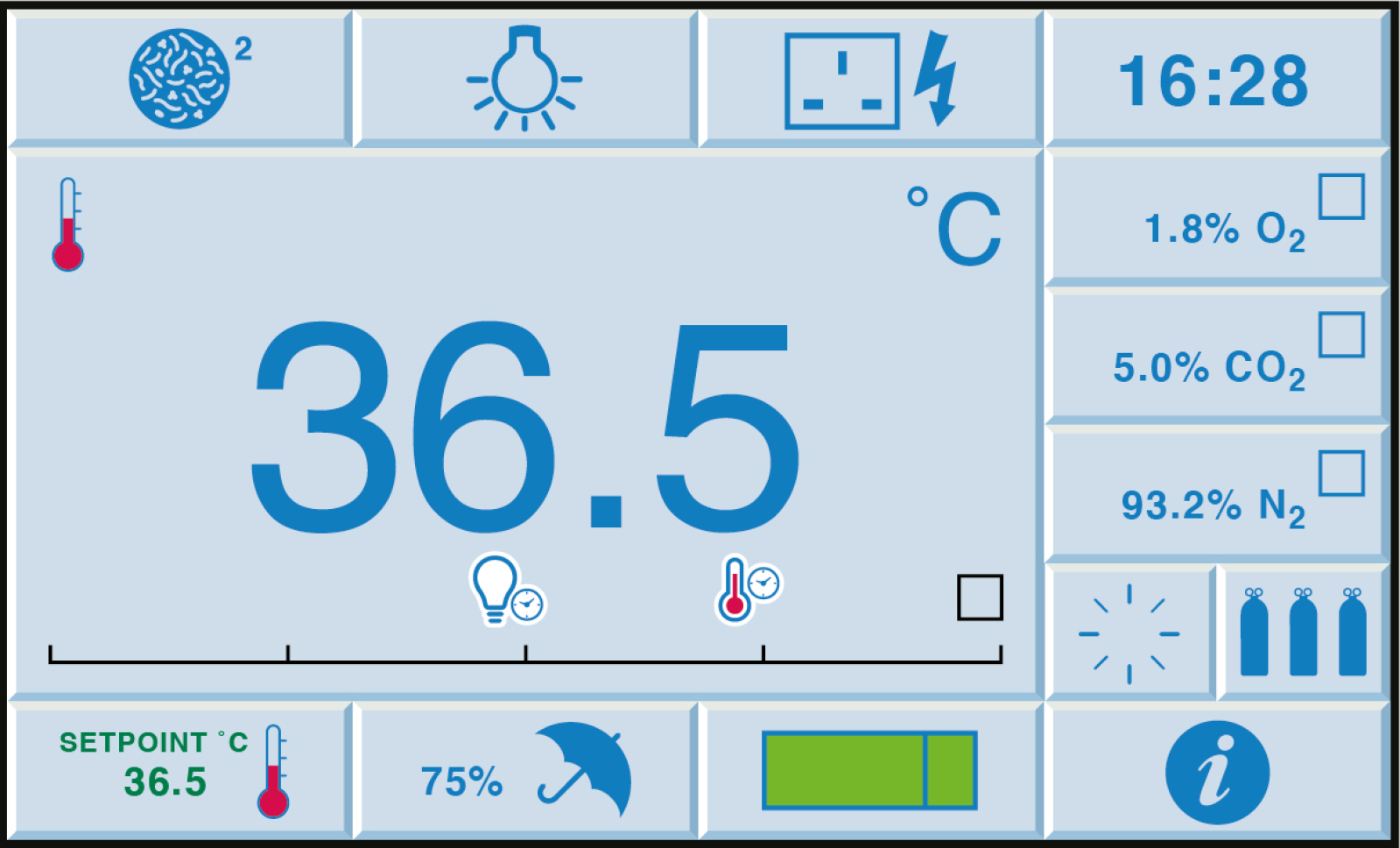

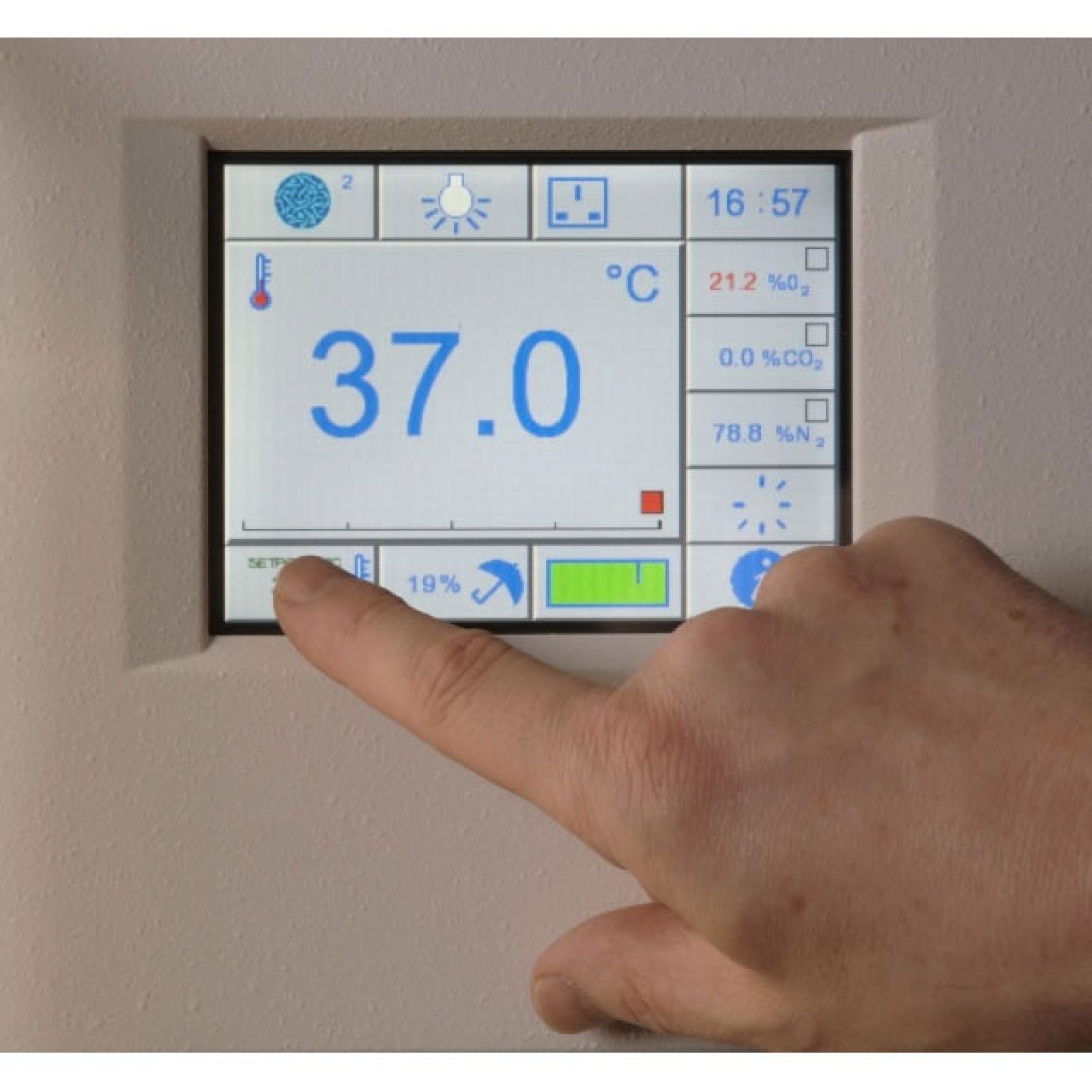

  • Colour, touch-screen control panel for ease of use and for visual display of parameters such as oxygen level, carbon dioxide level, temperature, humidity, and airlock cycle status.
  • Available with additional options such as HEPA filtration - levels of atmospheric cleanliness inside the workstation exceed the requirements of ISO 14644 Class 3.
  • Fully integrated gas control avoids bulky add-on systems and reduces the need for additional bench space.
  • Reminder to perform calibration can be set for between 7 and 21 days.

View Specification

Specifications

Capacity (litres)
300.00
Airlock Size (litres)
36.00
Porthole System
Manual
Gas Supplies
CO2/Air/N2
Footswitch
Wireless
Auto Sleeve Gassing
Available
Internal Mains Sockets
Available
Single Sample Entry
Available
Refrigeration
Available
Data Logging
Available
Airlock Cycle Time (seconds)
60, 120, 180, 240 or 300
Extra Cable Glands
Available
Microscope
Available
Automatic Dehumidifier
Included
Trolley Available
Available
CO2 Monitoring
Included
Vacuum Take Off
Available
Temperature Range
5°C above ambient up to 45°C
Touchscreen Control
Yes
Remote Access
Included
HEPA
Available
Dimensions (W/D/H mm)
1570 / 760 / 840
Weight (lbs/kgs)
330 / 150
